Maximize space utilization

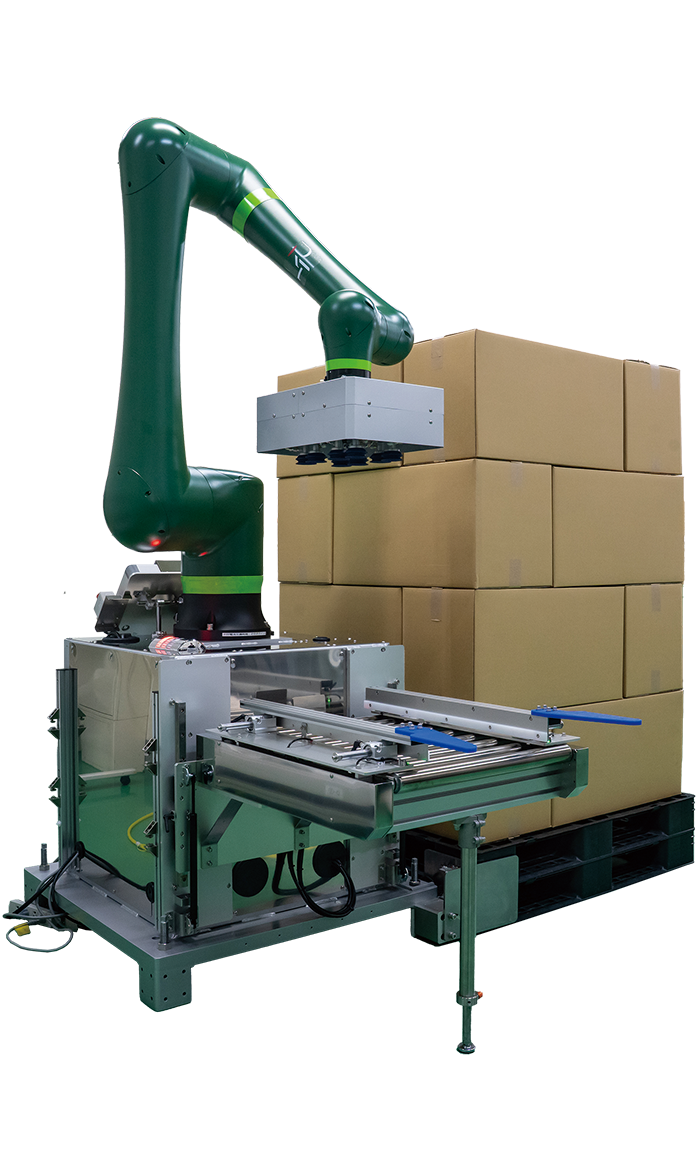

Mobile Palletizing Robot
Boost Operational Efficiency with Flexible Mobility
Contact Us

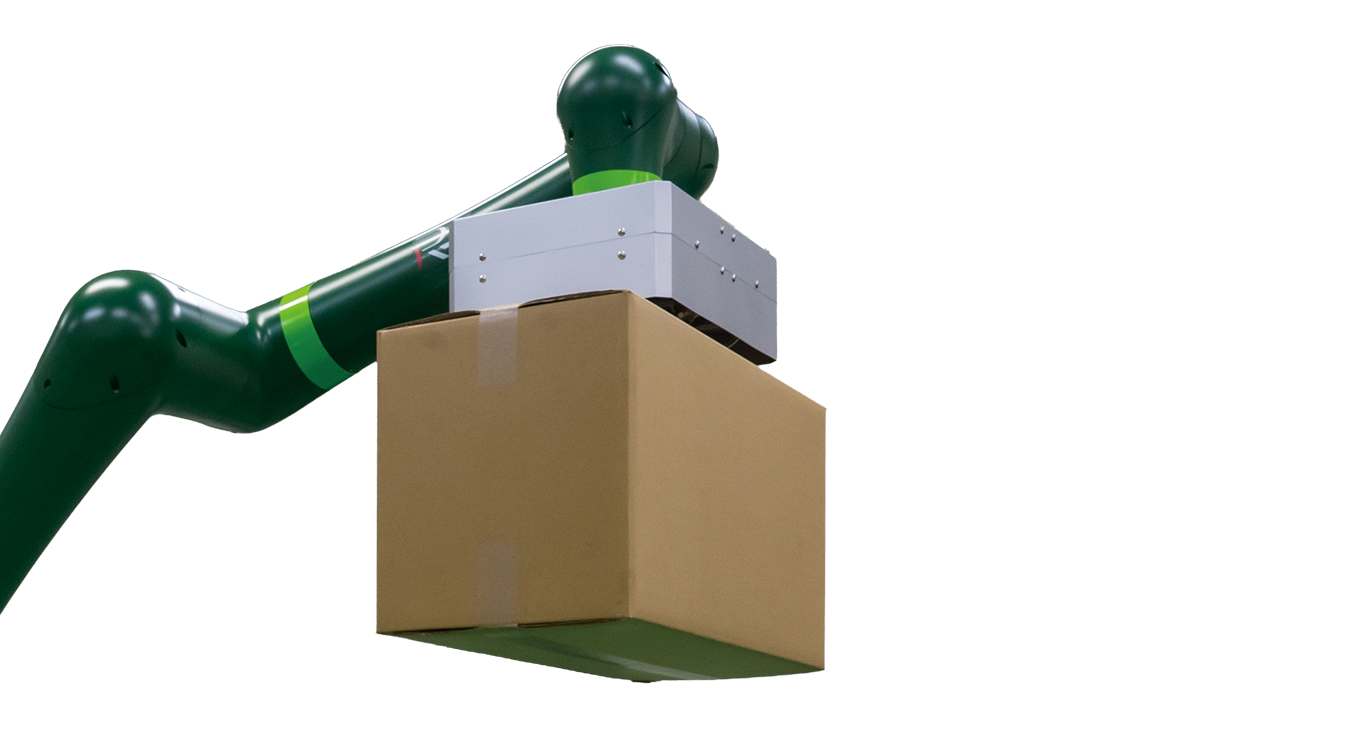

Full Performance Even in Limited Spaces
- Quick & Easy Deployment or Higher Productivity

Kowa Optronics' Mobile Palletizing Robot combines agile mobility with high-precision performance.
It delivers maximum functionality even in limited spaces, with fast and simple deployment to significantly boost productivity.
Backed by Kowa’s renowned reliability and quality, it is ready to excel in any manufacturing environment.

Are You Facing These Challenges?

  • Labor Shortage

    Difficulties in securing workers is making palletizing process a production bottleneck.

  • Long Implementation Time

    Eager to implement robotics palletizing but worry about lenghty setup processes and complexity.

  • Strict GMP Requirements

    Pharmaceutical and quasi-drug handling require comprehensive validation for new machinery.

01

Free Operators from manual palletizing
by introducing Robotic palletizing.

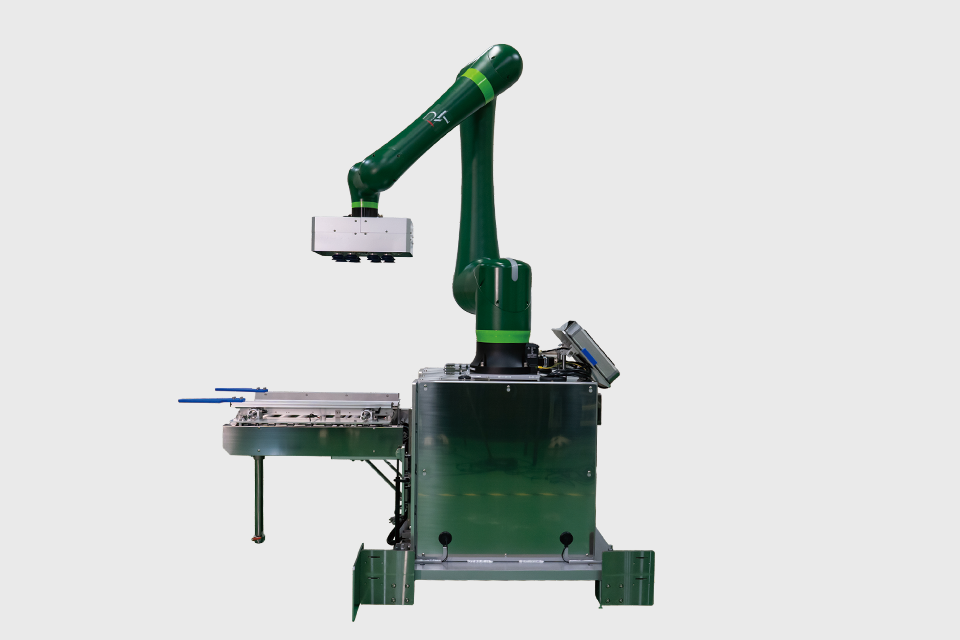

Collaborative Robot is Ideal for Diverse Palletizing Tasks

Automates a wide range of palletizing tasks with a single unit, from high-mix, low-volume to heavy items.
Handles precise stacking of small products and supports payloads up to 30 kg (including gripper weight) for heavy case transport.
As a true collaborative robot, it requires no safety fencing - enabling safe human-robot collaboration and simple reconfiguration.
Flexible deployment in shipping areas, warehouses, production lines, and more! It releases operators from labour-intensive palletizing duties.

02

Ready to Operate as fast as One Day
– All Essential Features Included

Fast Delivery and Setup

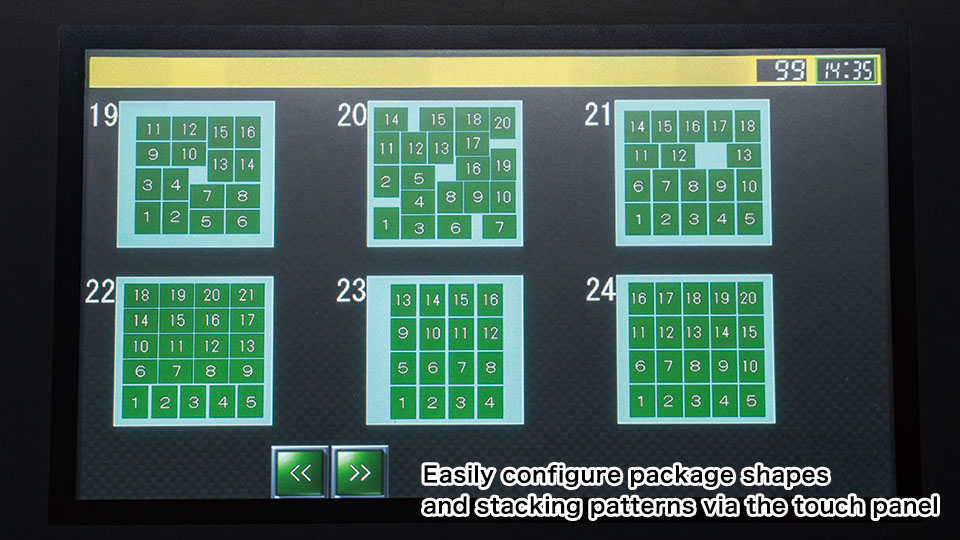

Pre-configured with a wide variety of stacking patterns - no complex programming required.
Integrated with camera and infeed conveyor as standard, allows immediate startup post-installation. Achieve full automation in as fast as one day, minimizing production downtime.

03

Complete Validation Support
from Planning to Operation

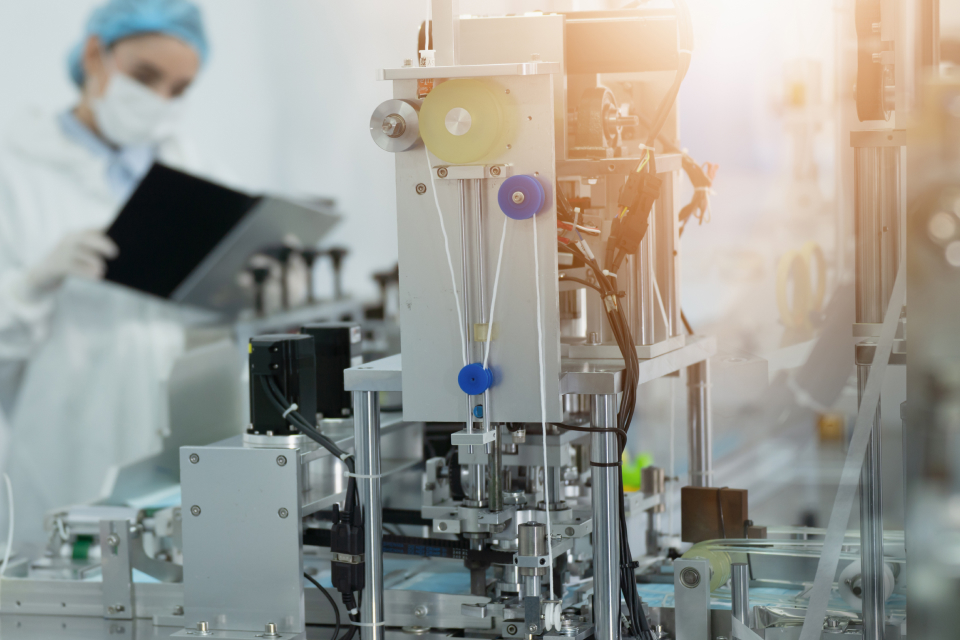

Proven GMP-Compliant Experience

We understand the stringent quality and validation demands of pharmaceutical manufacturing.
Leveraging our extensive track records in the pharma industry, we provide full support from planning and execution to complete documentation.
Overcome the typical barriers to automation with confidence, backed by proven expertise and technical capability.

Please feel free to contact us anytime.

Contact Us

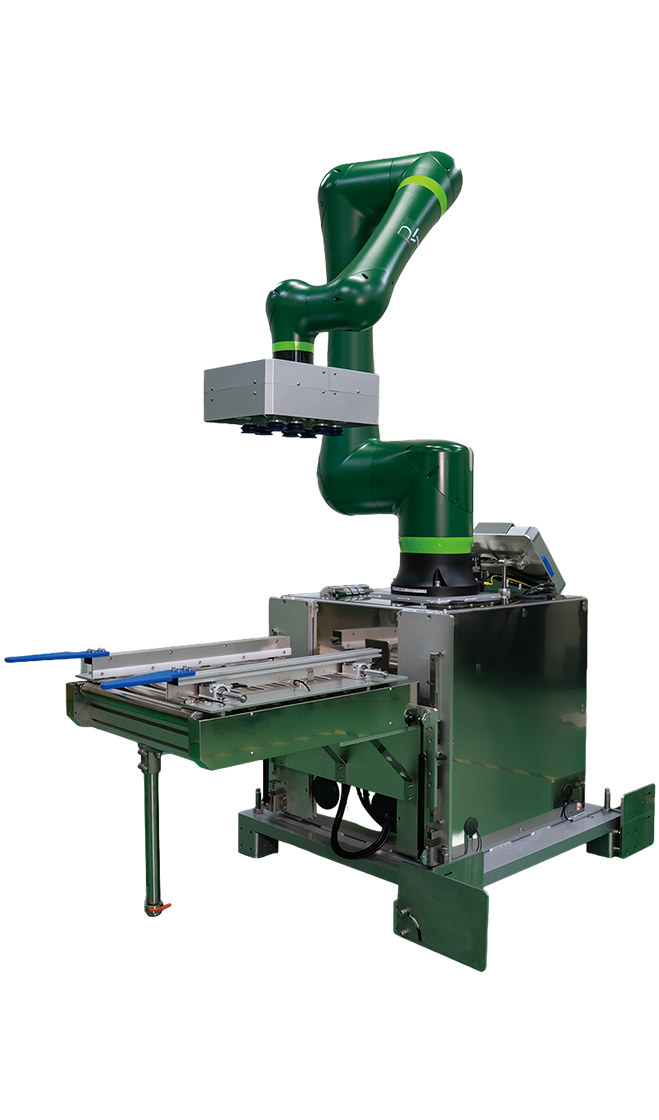

Watch the Palletizing Robot in Action

  • Camera Integration(Optional)

    Seamless integration with
    Kowa Optronics cameras
    for high-precision part recognition.

  • Wide Variety of Grippers

    Interchangeable grippers
    available as options - choose
    the best tool for your product.

  • Infeed Conveyor Included

    Align height with existing line
    to begin pick-and-place immediately.

  • Simple Relocation

    Easily relocate using a hand pallet jack
    - allowing dynamic repositioning base
    on operational needs.

  • Extensive Stacking Patterns

    Wide range of pre-programmed patterns
    for optimal stacking tailored
    to product type and size.

  • Payload Capacity: 30 kg
    (including gripper)

    Even as a collaborative robot,
    it reliably handles payloads of up to 30 kg.

Please feel free to contact us anytime.

Contact Us

Extensive Customization Options

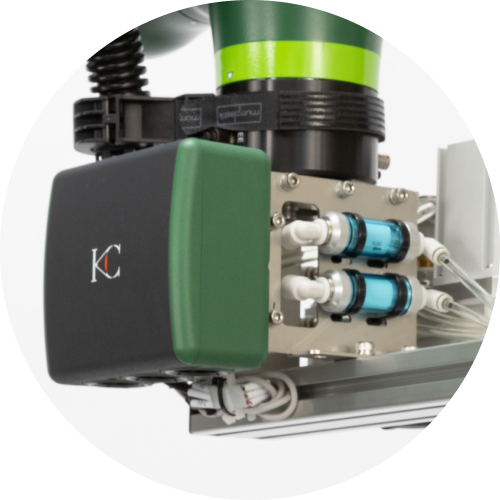

  • Gripper Options

    Wide selection of grippers ensures secure and versatile handling of various objects.

  • Vision System

    Optional vision features including intrusion detection, label inspection, and more - enhancing safety and accuracy.

  • Validation Support

    Full Support from Planning to Validation & Quality Assurance.

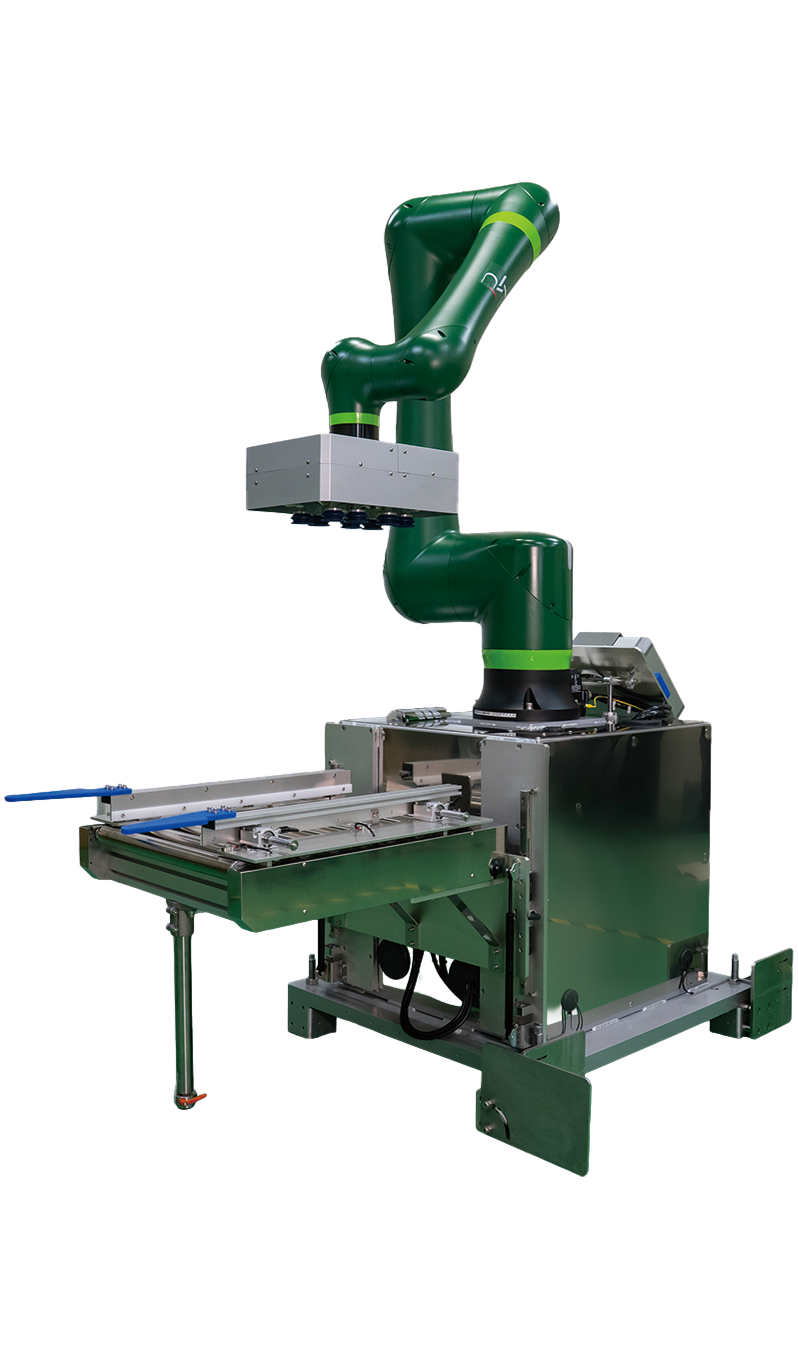

Specifications

Robot Weight
700 kg
Payload
30kg (typical workpiece up to 15kg
Reachability
1,889 mm @ 25 kg payload
1,756 mm @ 30 kg payload
Maximum Speed
1,000 mm/s
Maximum Stacking Height
1,600 mm (including pallet thickness)

Specification may vary depending on cardboard box size, pallet size, and other factors.

Supported Case Size
Min: W240 × D180 × H150 mm
Max: W650 × D500 × H380 mm
Control Unit
Robot Controller
Throughput
Up to 5 boxes/min

* Actual throughput varies depending on case size, shape, stacking pattern, installation position, etc.
